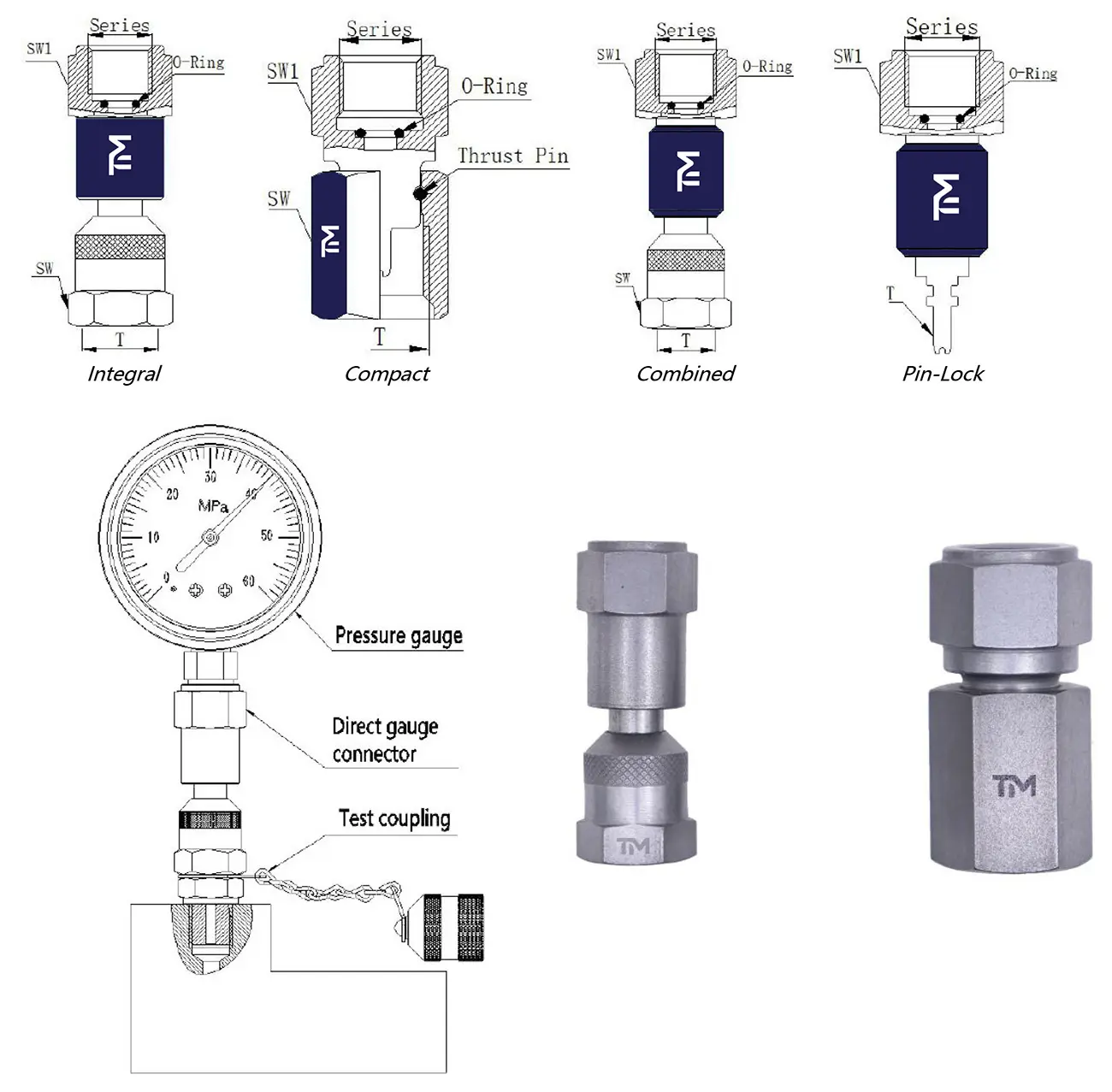

China TM hydraulic pressure gauge connector connected with test coupling for hydraulic system Supplier, Factories
Product Description
Industrial Applications
🚀 1) Heavy machinery in construction (e.g., SANY, XCMG, Terex, Palfinger)
⚡ 2) Wind power installations by companies like Suzlon
🚜 3) Agricultural vehicles and systems (Weichai, Lingong)
🤖 4) Industrial automation lines (Bosch Rexroth)
🔋 5) Energy generation and electric infrastructure (GE, Shanghai Electric)
⛏️ 6) Steel production and mining equipment
🚆 7) Railway transportation fleets (CRRC Corporation)
🏭 8) Machinery for molding and manufacturing (Haitian, KraussMaffei)

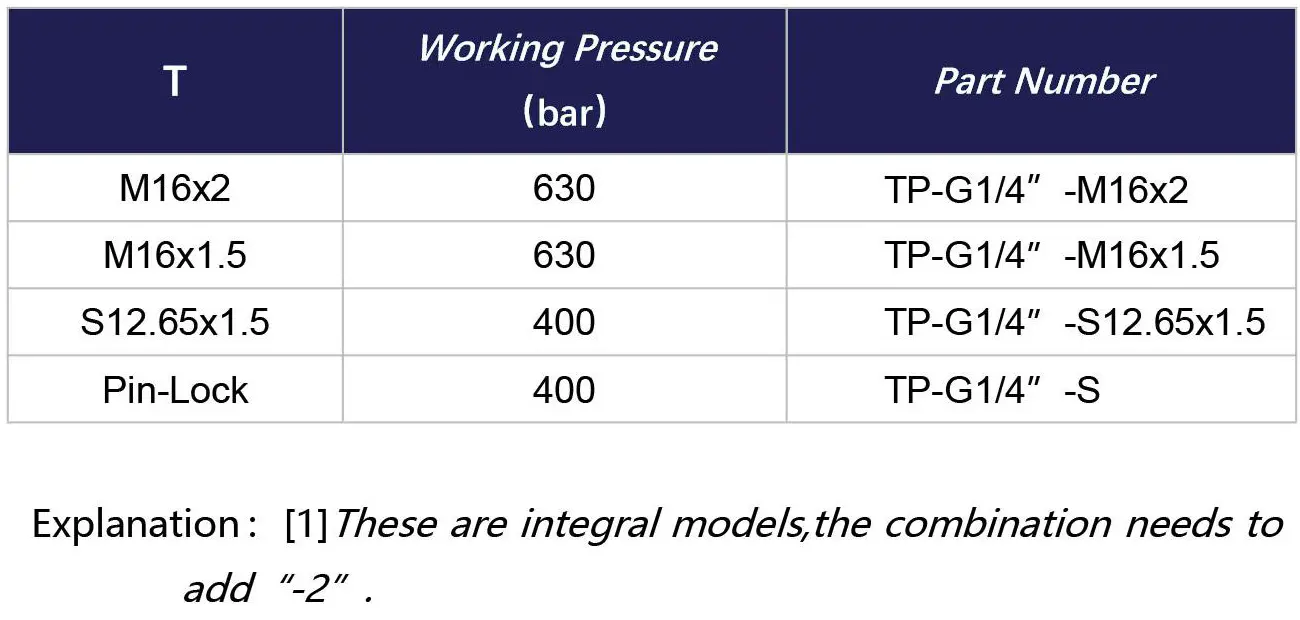

Technical Specifications
| Applications: | Applied for pressure monitoring & controlling. |
| Seal Material: |
NBR (-20℃ to +100℃) FKM (-20℃ to +200℃) EPDM (-40℃ to +150℃) Low temperature: -50℃ on request |
| Raw Material: | DIN 1.0718 carbon steel, 304 stainless steel, and 316L stainless steel. |
| Max Working Pressure: | 63 Mpa |
| Surface Treatment: | Zinc, Zinc Nickel (CrⅥ-free) |
| Working Fluid: | Suitable for hydraulic oils and other Mineral oil based fluids. For gas or other media, please confirm before ordering. |
| Certificates: | SGS, ISO |
Certifications & Quality Assurance
✅ ISO approved
✅ SGS approved
✅ Fatigue Testing passed
✅ 3 years guarantee
✅ Advanced enterprise award
Frequently Asked Questions
What is the maximum working pressure for these connectors?
The maximum working pressure for our pressure gauge connectors is 63 Mpa.
What materials are available for the connectors?
We offer DIN 1.0718 carbon steel, 304 stainless steel, and 316L stainless steel options.
Can these connectors be used for low-temperature environments?
Yes, we provide EPDM seals for temperatures down to -40℃, and special requests can be fulfilled for temperatures as low as -50℃.
How long does it take to receive a sample?
Standard samples are typically ready for delivery within 3 days.
Are your products certified for quality?
Yes, all our products are ISO and SGS approved, and have passed rigorous fatigue testing.
Is logo customization available?
Yes, we provide customized logo services to meet your branding requirements.
