TM Hydraulic
1 / 1
Wholesale TM hydraulic test point with bulkhead connection for hydraulic system Manufacturer, Factory
Product Description
Applications
✦ (1) Construction sector equipment (SANY, XCMG, Terex, Palfinger)
✦ (2) Wind power plants (e.g., Suzlon Energy)
✦ (3) Agricultural machinery from Weichai and Lingong
✦ (4) Industrial automation and control (Bosch Rexroth)
✦ (5) Power industry leaders such as GE and Shanghai Electric
✦ (6) Metallurgy and underground mining solutions
✦ (7) Railway systems (CRRC Corporation)
✦ (8) Plastic and metal forming machinery (Haitian, KraussMaffei)
Technical Specifications
| Applications: | Applied for pressure monitoring & controlling. |
| Seal Material: |
NBR (Temp range -20℃ to +100℃) FKM (Temp range -20℃ to +200℃) EPDM (Temp range -40℃ to +150℃) Low temperature : -50℃ on request |
| Raw Material: | DIN 1.0718 carbon steel, 304 stainless steel, and 316L stainless steel. |
| Max Working Pressure: | 63 Mpa |
| Surface treatment: | Zinc, Zinc Nickel (CrⅥ-free) |
| Working Fluid: |
Suitable for hydraulic oils and other Mineral oil based fluids. When used with gas or other fluid medium, please confirm with factory before ordering. |
| Certificates: | SGS, ISO |
| Service: | Sample in 3 days, logo customized. |

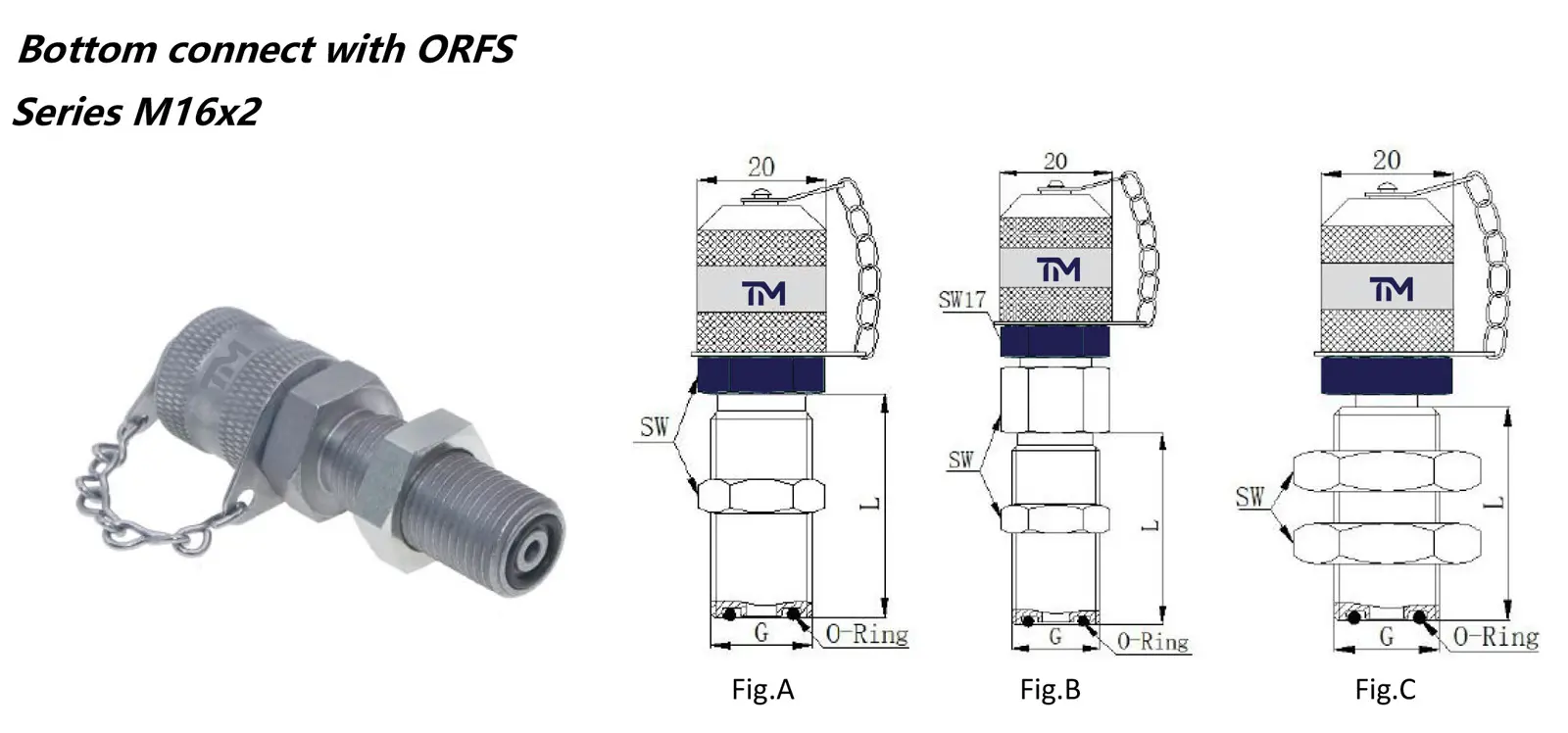

Pressure test coupling with bottom connection

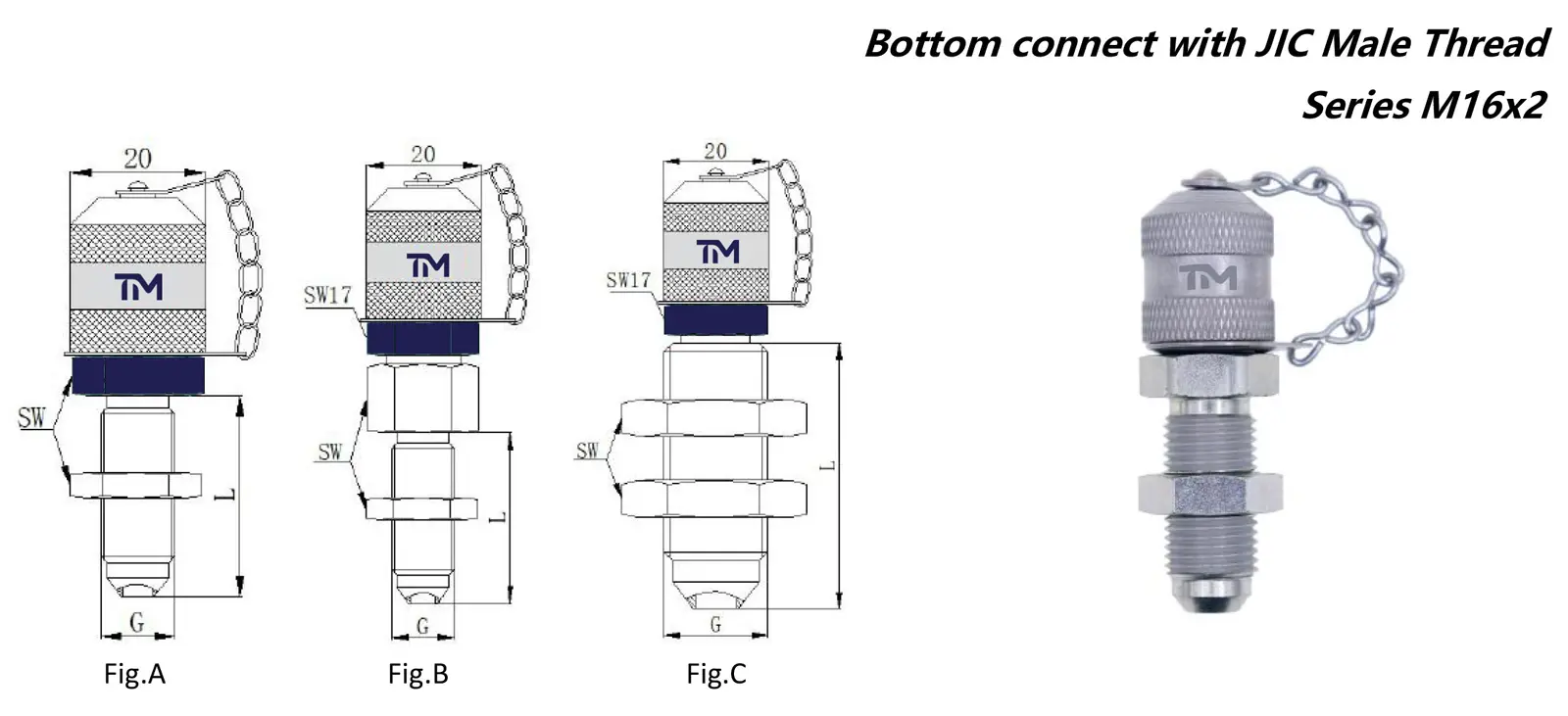

Hydraulic test point with bottom connection

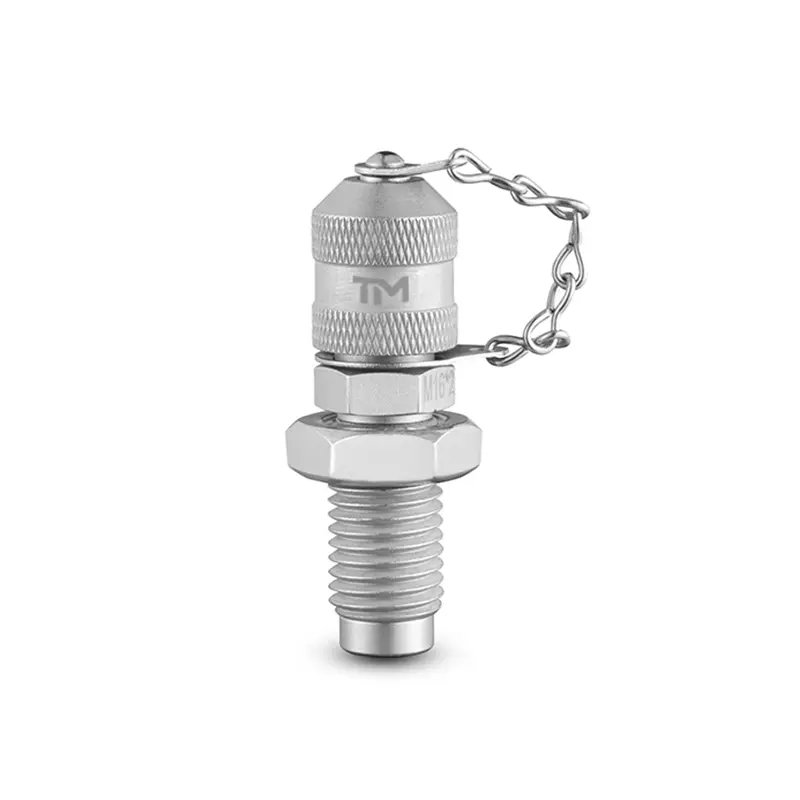

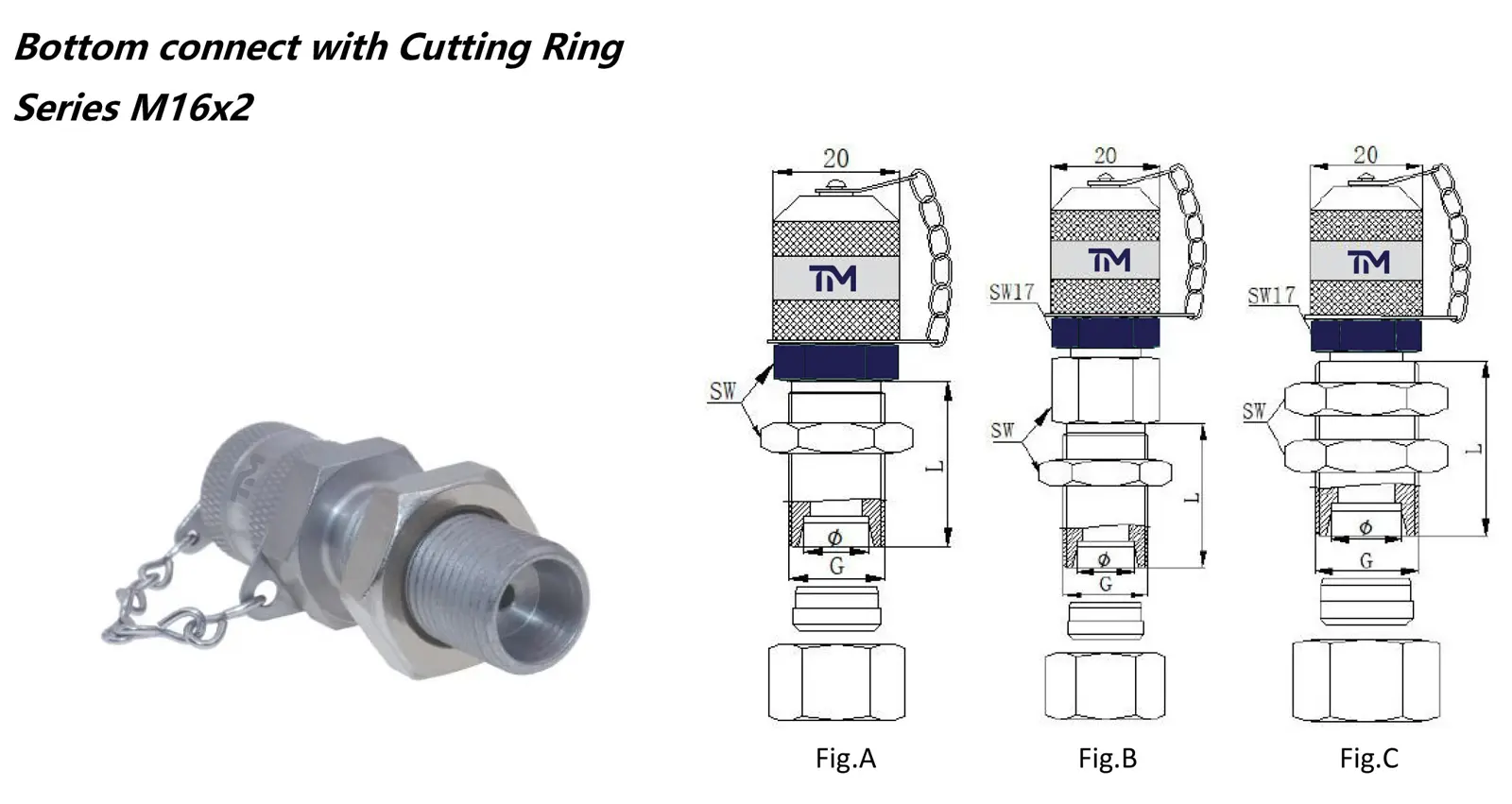

Hydraulic test point with bulkhead connection

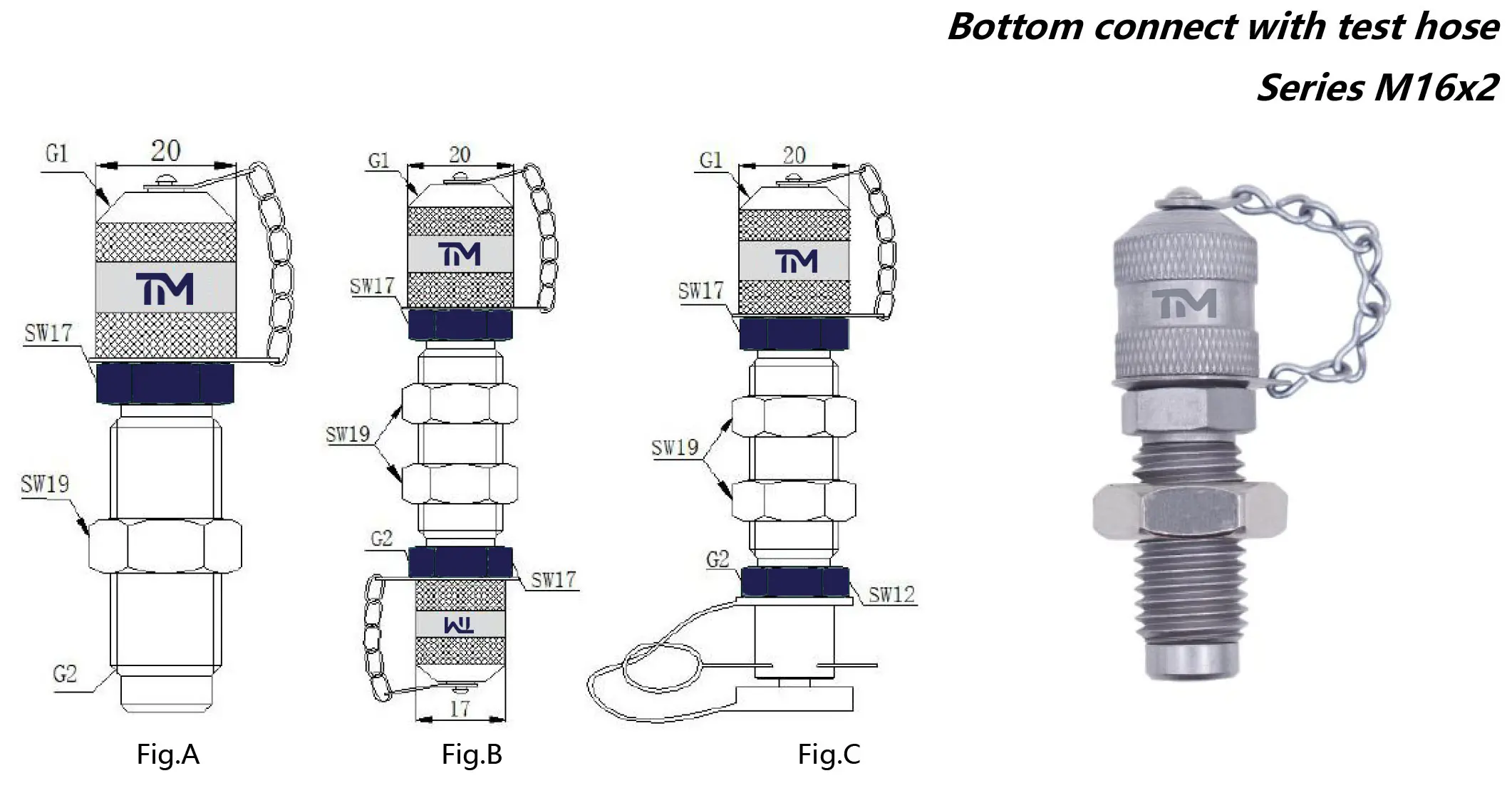

Hydraulic test point connected with hose
Protection Cap
Certifications & Quality Assurance
✅ ISO approved
✅ SGS approved
✅ Fatigue Testing passed
✅ 3 years guarantee
✅ Awarded Advanced Enterprise status
Our Advantages
⭐ Factory-direct hydraulic test fittings with focused expertise
⭐ Patented cone seal delivers zero-leak results
⭐ Fair pricing backed by strict quality assurance
⭐ Reliable partner to major players like XCMG and HAWE
⭐ Serving OEM clients including Parker, XCMG, HAWE, and SANY
⭐ Fully interchangeable with Minimess, Stauff, Minipress and similar systems
FAQ
Q: What is the maximum pressure these couplings can handle?
A: Our hydraulic test couplings are designed for a maximum working pressure of 63 Mpa.
Q: Which seal materials are available for different temperatures?
A: We offer NBR (-20℃ to +100℃), FKM (-20℃ to +200℃), and EPDM (-40℃ to +150℃). Special low-temperature seals down to -50℃ are available upon request.
Q: Are your test points compatible with other major brands?
A: Yes, our products are fully interchangeable with systems like Minimess, Stauff, and Minipress.
Q: What raw materials are used in production?
A: We use high-quality DIN 1.0718 carbon steel, 304 stainless steel, and 316L stainless steel for durability and corrosion resistance.
Q: Do you offer customization or OEM services?
A: Yes, we provide factory-direct OEM services, including logo customization and samples delivered within 3 days.
Q: What quality certifications do you have?
A: Our factory and products are SGS and ISO approved, and all fittings pass rigorous fatigue testing.
