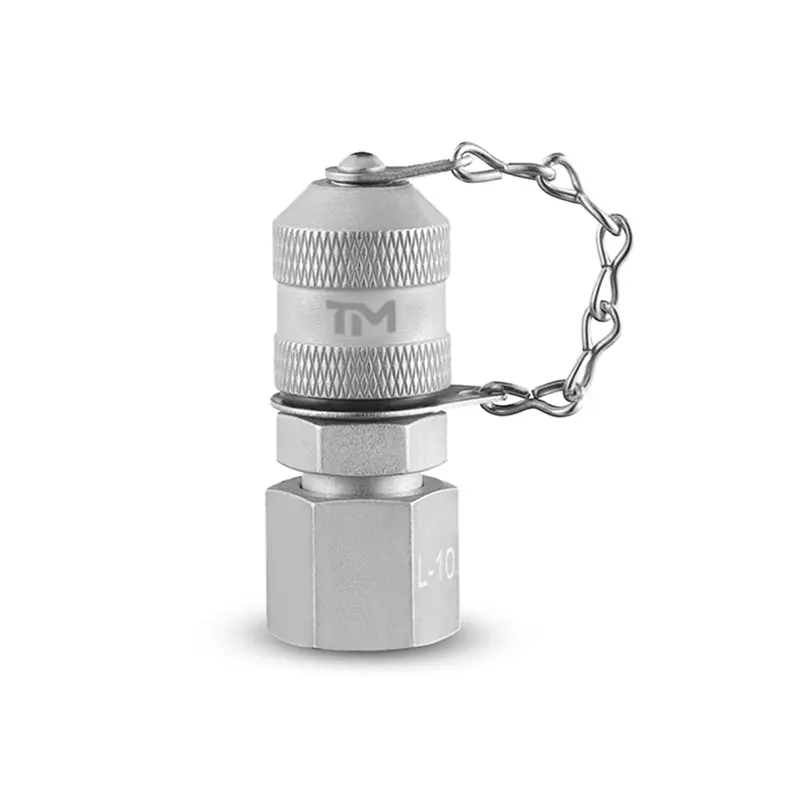

China TM hydraulic pressure test coupling with JIC 37° connection for hydraulic system Suppliers, Factory
Product Description
Applications
Technical Specifications
| Applications: | Applied for pressure monitoring & controlling. |
| Seal Material: |
NBR (Temperature range -20℃ to +100℃) FKM (Temperature range -20℃ to +200℃) EPDM (Temperature range -40℃ to +150℃) Low temperature : -50℃ on request |
| Raw Material: | DIN 1.0718 carbon steel, 304 stainless steel, and 316L stainless steel. |
| Max Working Pressure | 63 Mpa |
| Surface treatment: | Zinc, Zinc Nickel (CrⅥ-free) |
| Working Fluid: |
Suitable for hydraulic oils and other Mineral oil based fluids. When used with gas or other fluid medium, please confirm before ordering. |
| Certificates: | SGS, ISO |
| Sample Delivery & Service: | Sample in 3 days, logo customized. |

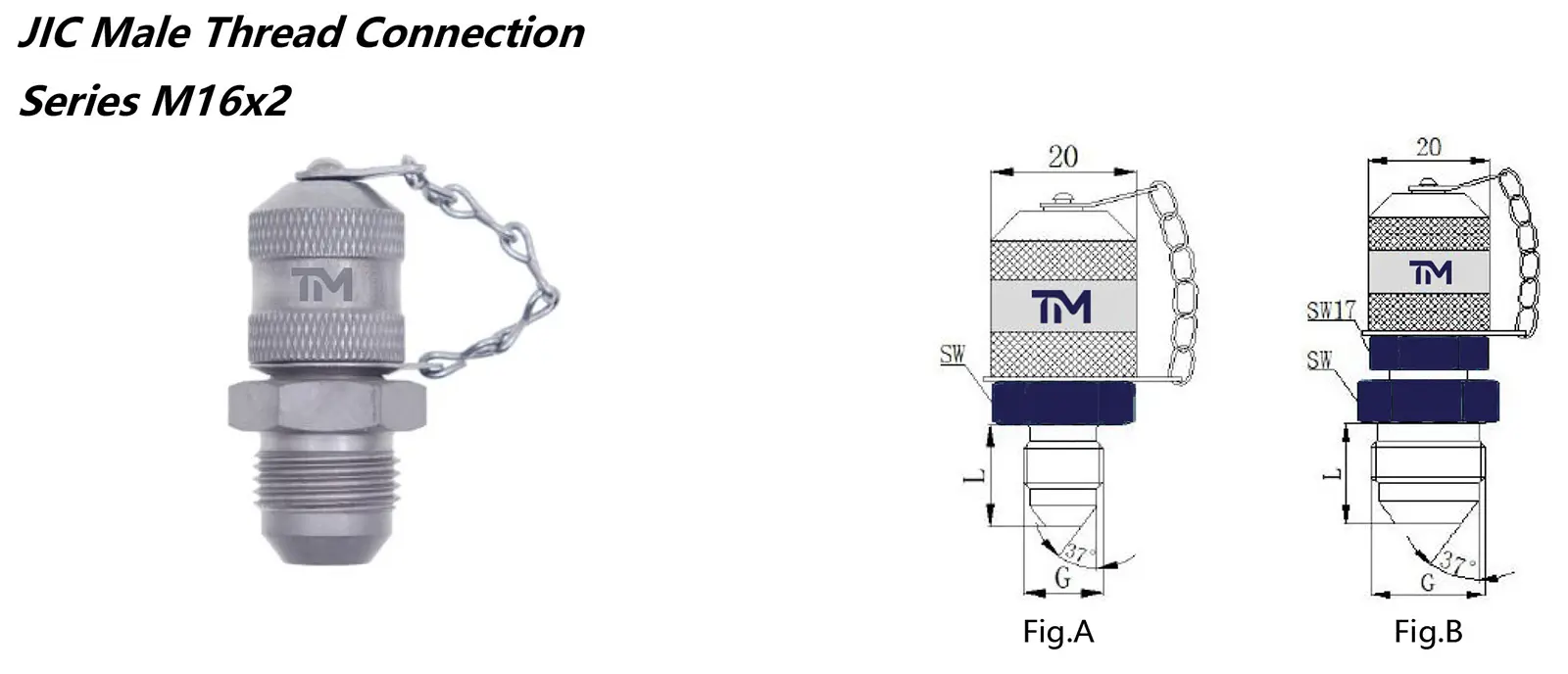

pressure test point with JIC mal connection

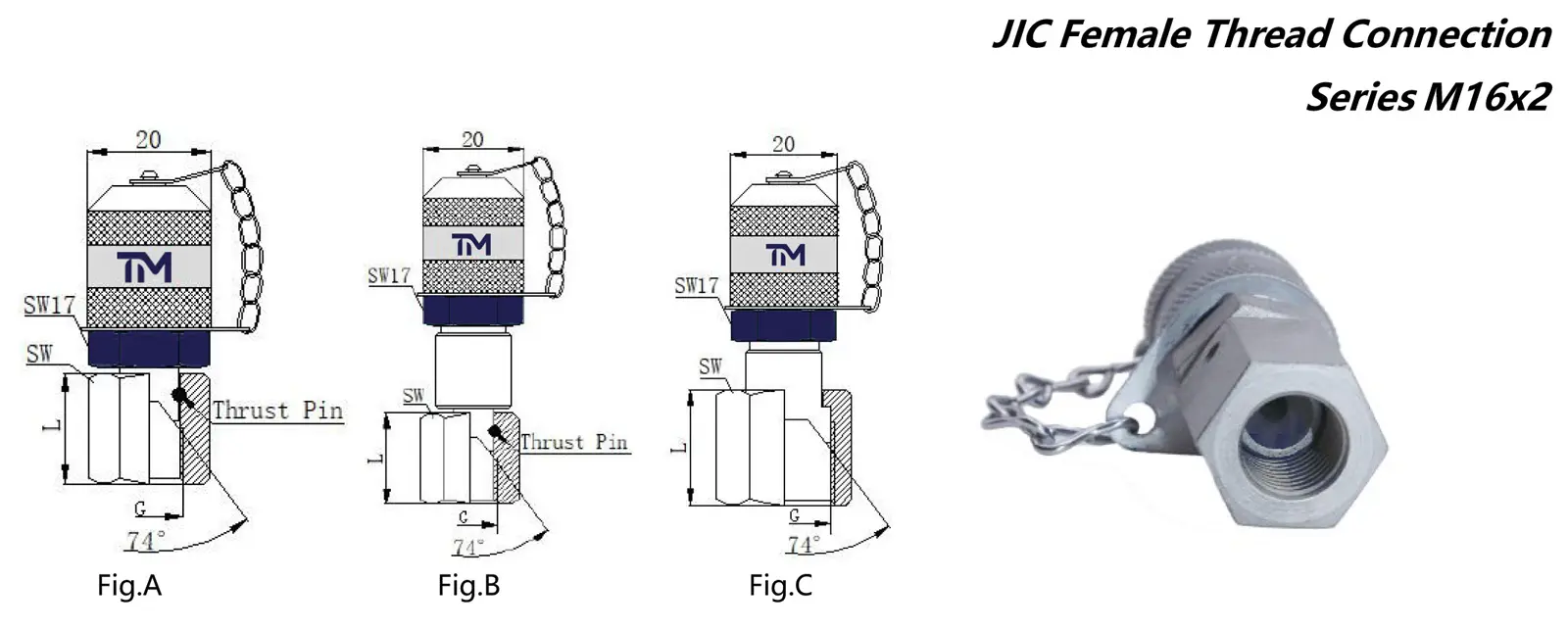

pressure test coupling with JIC 37° connection
Protection Cap
Certifications & Quality Assurance
Our Advantage
Frequently Asked Questions
The maximum working pressure for our fittings is 63 Mpa, suitable for high-pressure industrial applications.
We offer NBR (-20℃ to +100℃), FKM (-20℃ to +200℃), and EPDM (-40℃ to +150℃). Low-temperature options down to -50℃ are available upon request.
Yes, our hydraulic test fittings are 100% compatible with leading brands such as Minimess, Stauff, MCS, and Minipress.
We use high-quality DIN 1.0718 carbon steel, 304 stainless steel, and 316L stainless steel to ensure durability and corrosion resistance.
Yes, we provide logo customization services and can deliver samples within 3 days to meet your specific requirements.
Our products are SGS and ISO approved, and they have successfully passed rigorous fatigue testing for guaranteed performance.
