Wholesale TM hydraulic pressure test point with tube connection for hydraulic system Supplier, Factories
Product Description
Applications
01
Construction equipment from leading brands like SANY, XCMG, Terex, and Palfinger
02
Wind power generation units, such as those from Suzlon Energy
03
Agricultural machinery including solutions from Weichai Power and Lingong Construction
04
Automated manufacturing systems by Bosch Rexroth and others
Technical Specifications
| Applications | Applied for pressure monitoring & controlling. |
| Seal Material | NBR (-20℃ to +100℃), FKM (-20℃ to +200℃), EPDM (-40℃ to +150℃), Low temp: -50℃ on request |
| Raw Material | DIN 1.0718 carbon steel, 304 stainless steel, and 316L stainless steel. |
| Max Working Pressure | 63 Mpa |
| Surface treatment | Zinc, Zinc Nickel (CrⅥ-free) |
| Working Fluid | Suitable for hydraulic oils and other Mineral oil based fluids. |
| Certificates | SGS, ISO |

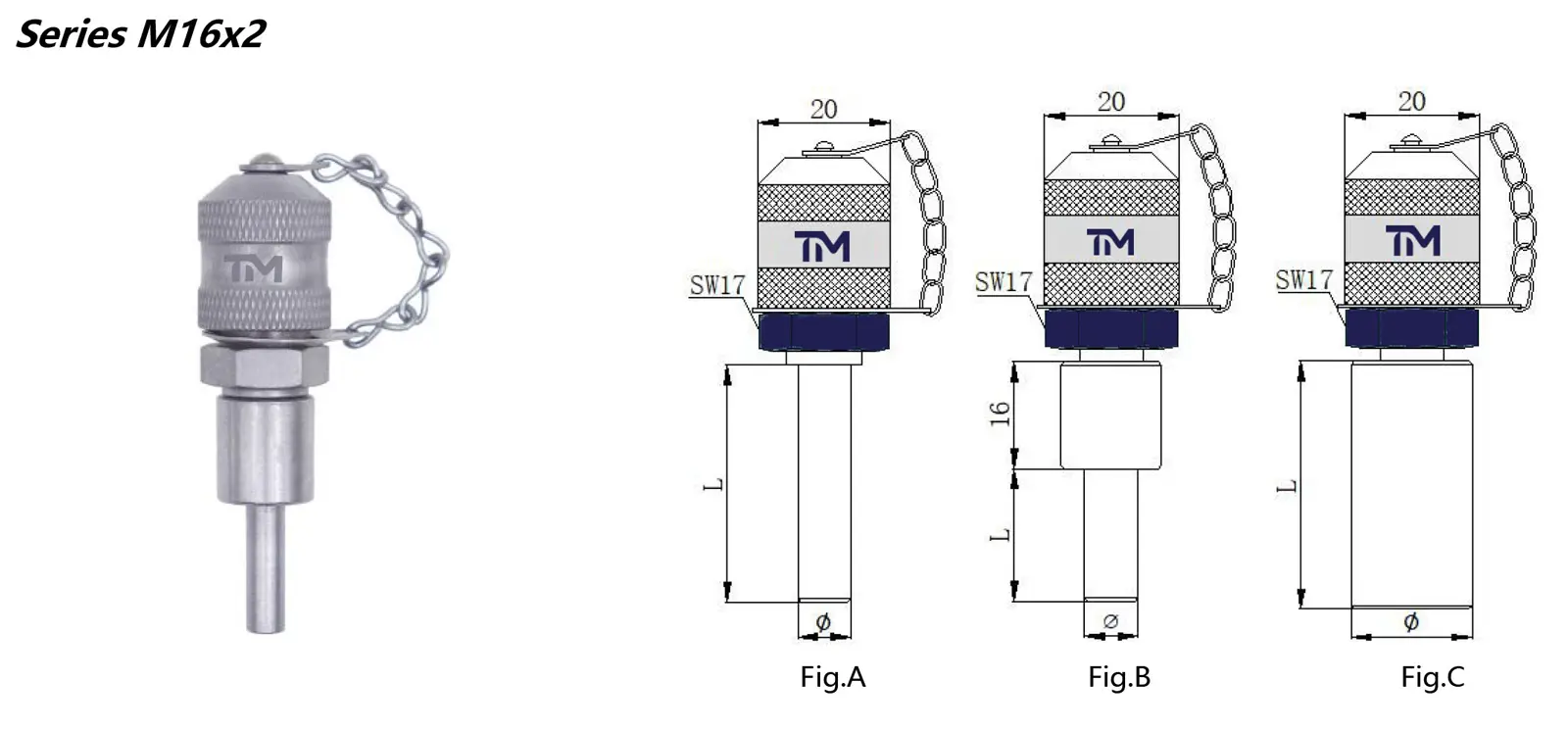

Pressure test point with tube connection
Protection Cap
Our Advantages & Quality
⭐ Manufacturer with exclusive focus on hydraulic test components
⭐ Leak-free design with proprietary cone-sealing system
⭐ Serving OEM clients including Parker, XCMG, and SANY
⭐ Cross-compatible with Minimess and Stauff products
⭐ ISO & SGS Approved quality standards
⭐ 3 years guarantee on products
Frequently Asked Questions
Q1: What materials are available for the test points?
We offer DIN 1.0718 carbon steel, 304 stainless steel, and 316L stainless steel options to suit different environmental requirements.
Q2: What is the maximum working pressure these components can handle?
Our hydraulic test components are designed to withstand a maximum working pressure of up to 63 Mpa.
Q3: Are your products compatible with other brands?
Yes, our components are cross-compatible with major industry brands such as Minimess and Stauff.
Q4: What seal materials do you provide for different temperatures?
We offer NBR (-20℃ to +100℃), FKM (-20℃ to +200℃), and EPDM (-40℃ to +150℃). Low-temperature seals (-50℃) are available upon request.
Q5: How fast can I get a sample?
Standard samples can be delivered within 3 days, and we also offer logo customization services.
Q6: What certifications do your products hold?
Our manufacturing processes and products are SGS and ISO approved, ensuring high quality and reliability.
